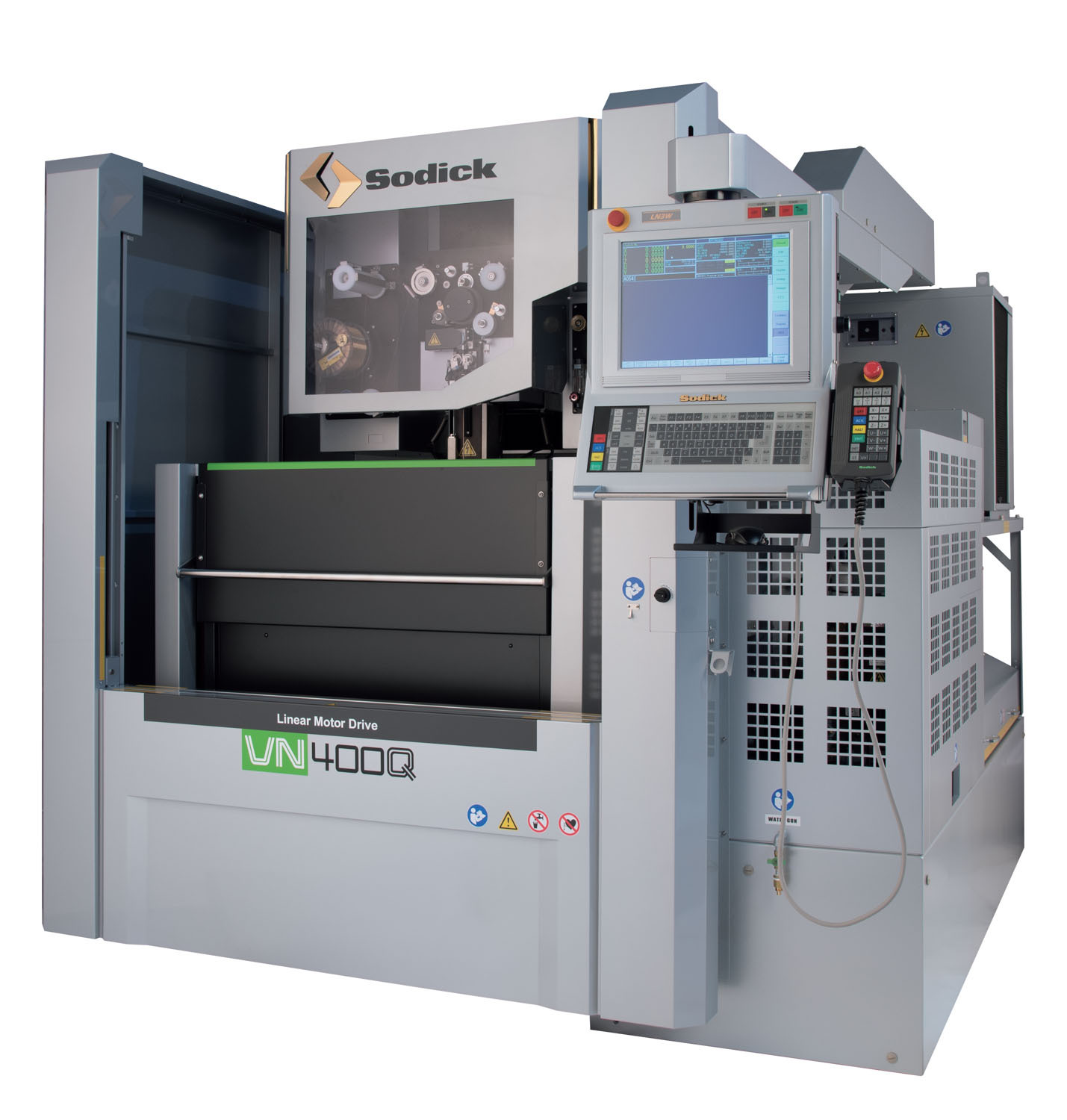

VN400Q
Starting with the development of electrical discharge circuits, Sodick has continued to make untiring efforts in the research and development of advanced EDMs. Sodick’s philosophy has been the pursuit of the highest level of accuracy, speed and versatility of machining in order to provide the highest quality products to its customers.
Sodick's: Power Supply Units, Discharge Units, Linear Motors, Motion Controllers and Fine Ceramic Components have evolved as its fi ve core technologies. These developments have positioned Sodick at the pinnacle of EDM technologies.
X/Y/Z axis travel (mm): | 400 x 300 x 230 |
U/V axis travel (mm): | 90 x 90 |
Distance from floor to table top (mm): | 970 mm |
Machine dimensions (W x D x H, mm): | 2,120 x 3,065 x 2,135 |
Features:
- 10 year warranty on positioning accuracy
- Linear motor (X, Y, U, V axis)
- Absolute linear scales (X, Y, U, V axis)
- Ceramic components
- LN2W generator
- Remote controller
- Improved Ease of Operation
- Energy saving circuit
- Automatic water level control
- Fixed Jet AWT with POP-up function
- Heart NC software
- Wire end remover
- Dielectric cooling unit
- Voltage stabiliser
- LAN interface
- USB port
