Die Sinking EDM

The entire Sodick die-sinking EDM range features linear motors. They also incorporate Sodick's new LP Control, enabling Parasolid files (solid models) to be directly imported into the control. This maximises cutting efficiency, reduces workflow and programming errors.

X/Y/Z axis travel (mm)	350 x 250 x 270
Table dimensions	600 x 400
Max. workpiece weight (kg)	550
Machine dimensions W x D x H (mm)	2080 x 1955 x 2350

AD35L

Spec. Enquire

X/Y/Z axis travel (mm):	600 x 400 x 400
Table dimensions (W x D, mm):	750 x 550 (ceramic)
Work tank fluid level (Min. to Max., mm):	170 ~ 450
Work tank capacity (l):	1,200 x 800 x 500

AD55L

Spec. Enquire

X/Y/Z axis travel (mm):	400 x 300 x 270
Table dimensions (W x D, mm):	600 x 400
Work tank dimensions (W x D x H, mm):	750 x 620 x 350
Work tank fluid level (Min. to Max., mm):	100 ~ 300

AL40G

Spec. Enquire

X/Y/Z axis travel (mm):	600 x 420 x 370
Table dimensions (W x D, mm):	750 x 550
Work tank dimensions (W x D x H, mm):	950 x 740 x 450
Work tank fluid level (Min. to Max., mm):	150~400

AL60G

Spec. Enquire

X/Y/Z axis travel (mm):	850 x 520 x 420
Table dimensions (W x D, mm):	1,100 x 700
Work tank dimensions (W x D x H, mm):	1,400 x 950 x 500
Work tank fluid level (Min. to Max., mm):	150 ~ 450

AL80G

Spec. Enquire

X/Y/Z axis travel (mm):	1200 x 650 x 500
Table dimensions (W x D, mm):	1600 x 1000
Work tank dimensions (W x D x H, mm):	2100 x 1250 x 650
Work tank fluid level (Min. to Max., mm):	325 ~ 600

AG100L

Spec. Enquire

X/Y/Z axis travel (mm):	2,000 x 1,200 x 800
Table dimensions (W x D, mm):	2,500 x 1,550
Work tank dimensions (W x D x H, mm):	3,000 x 1,800 x 1,150
Work tank fluid level (Min. to Max., mm):	520 ~ 950

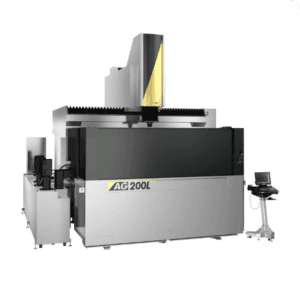

AG200L

Spec. Enquire

X/Y/Z axis travel (mm):	900 x 1500 (+500) x 600
Table dimensions (W x D, mm):	1000 x 2000
Work tank dimensions (W x D x H, mm):	1400 x 2590 x 800
Work tank fluid level (Min. to Max., mm):	400 ~ 750

AQ15L

Spec. Enquire

X/Y/Z axis travel (mm):	1,200 x 2,000 x 600
Table dimensions (W x D, mm):	1,500 x 2,000
Work tank dimensions (W x D x H, mm):	1,900 x 2,590 x 800
Work tank fluid level (Min. to Max., mm):	400 ~ 750

AQ20L

Spec. Enquire
