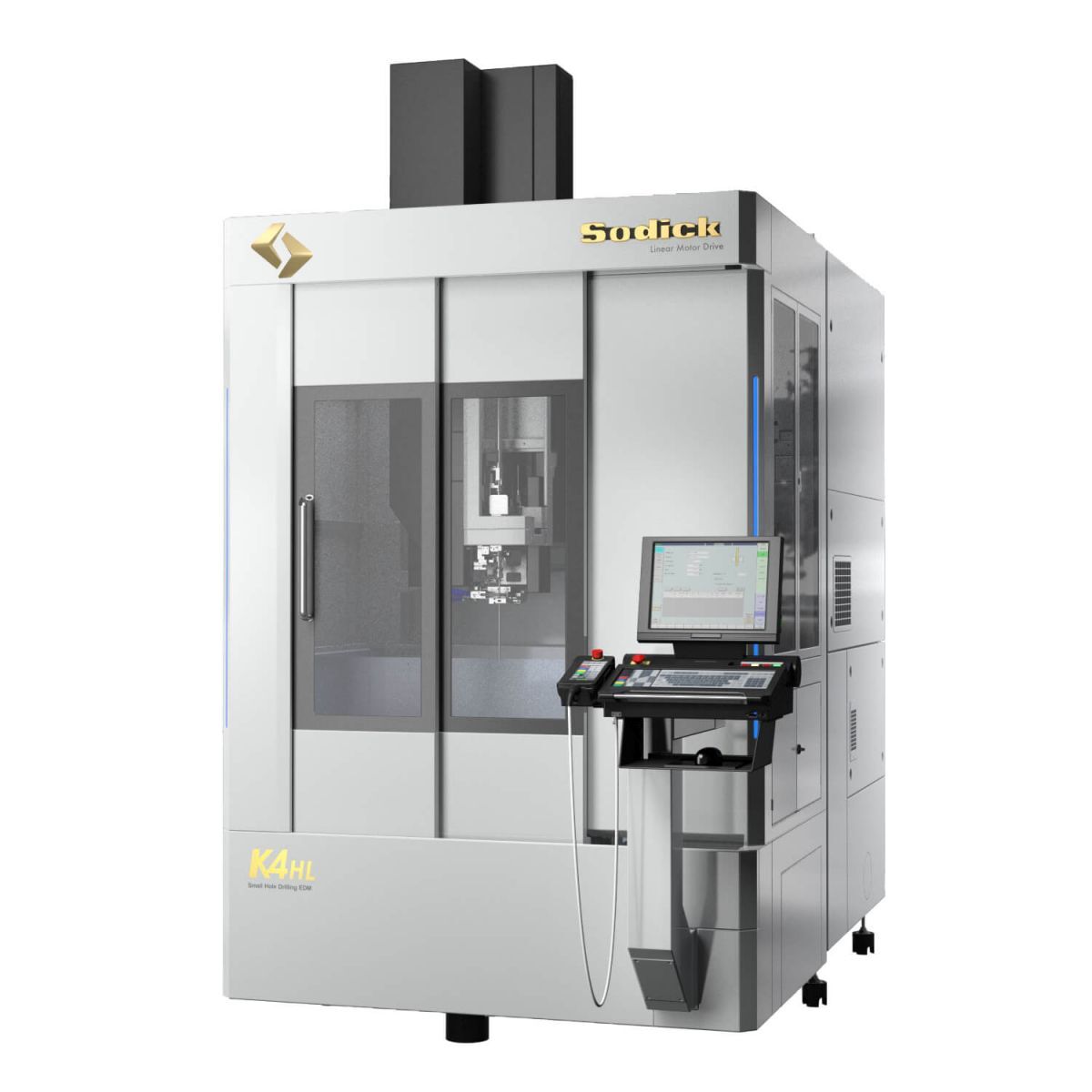

K4HL Hole Drill EDMK4HL Hole Drill EDMK4HL
The K4HL is built by making the most Sodick’s proven know-how with the successful Wire-cut and Sink EDM range to ensure the highest level of accuracy, incorporates Sodick linear motor drives on X, Y and Z axes.
Additional options that can be specified for the machine include a rotary table, Automatic Tool Changer (ATC), Lower Guide Changer (LGC), Automatic Electrode Feeder Changer (AEF-C) and a probe unit to measure and adjust the tilt angel of the work-piece.
Features
- 10-year guarantee on positioning accuracy
- Linear Motor (X/Y/Z axis)
- Linear scale (X/Y/Z axis)
- W-axis digital
- Sodick Motion Controller
- Linear motor cooling unit
- Dielectric fluid cooling unit
- SPK controller
- 15" TFT colour screen
- Remote controller
- LN Professional software for optimum condition search
- Through-hole detection
- Intermediate guides
- AEF (Automatic Electrode Feeder)
- LAN interface
- USB port
- Spindle with max. 1,000 rpm
- Work light
Options
- Rotary Table
- ATC (Automatic Tool Changer)
- AEF Changer
- LGC (Lower Guide Changer)
- Active Power Restart (UPS)
- 8-axis simultaneous control SPK-E
- Probe unit
