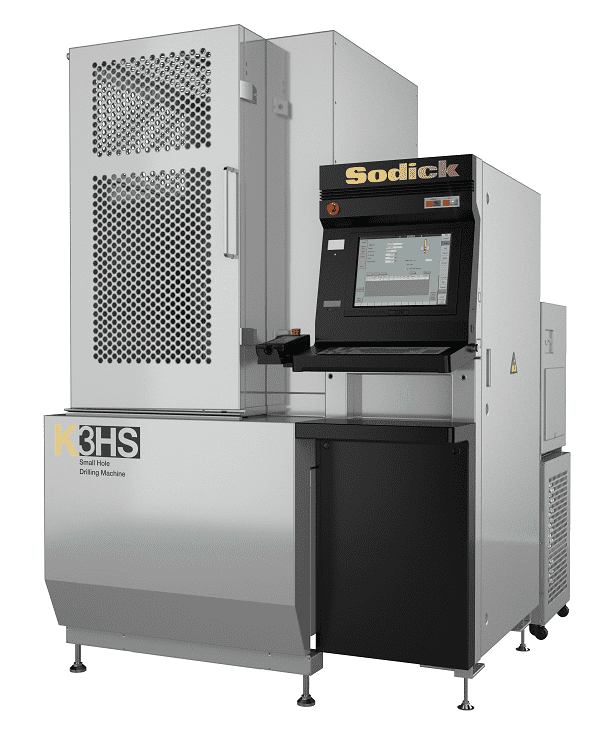

K3HS
The NC-device equipped high-end model, K3HS has advantage in cutting multiple start holes for wire EDM or for automated parts manufacturing.
The machine comes with an automatic programming software (LN Assist) as standard. LN Assist Software enables even beginners to easily operate the machine. Complicated programming is also possible by using several calculation and macro programs.
The machine is available in 2 different dielectric fluid as factory specification; either de-ionised water or V-KS fluid, depending on customer’s needs & application.
X/Y/Z axis travel (mm): | 300 x 400 x 300 |
Table dimensions (W x D, mm): | 480 x 790 |
Work tank dimensions (W x D x H, mm): | 470 x 780 x 285 |
Max. workpiece weight (kg): | 300 |
Features
- LK2 controller
- Sodick Motion Controller
- Dielectric fluid cooling unit
- 15" TFT colour screen
- Remote controller
- LN Assist software for optimum condition search
- Automatic depth measurement
- Through-hole detection
- AEF (Automatic Electrode Feeder)
- Spindle with max. 1,000 rpm
- LAN interface
- USB port
- Work light
Options
- Column up (100/200mm)
- Intermediate guide
- Rotary table
- Oscilloscope
- W-axis digital
- LK20 – 8-axis controller
